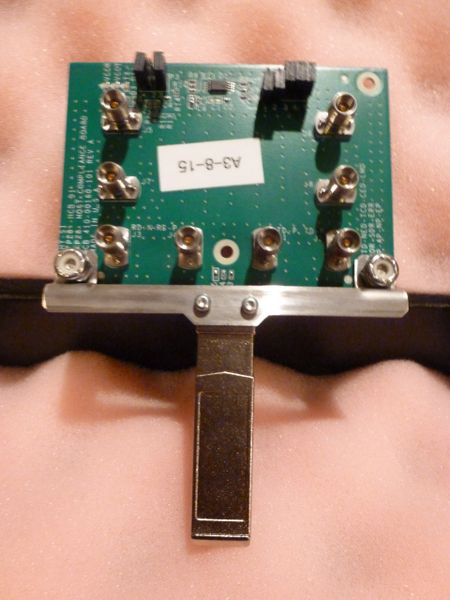

SFP28/56 HOST COMPLIANCE BOARD

$3,900.00

SFP28 (zSFP+) HOST COMPLIANCE BOARD.

25G-AUI HOST COMPLIANCE BOARD.

Compliant to IEEE802.3by (25GBASE-CR and 25GBASE-CR-S), IEEE802.3cd (50GBASE-CR), IEEE 802.3bm, IEEE802.3bs, test fixture specifications.

  1. Compliant to OIF-CEI test fixture specifications
  2. Compliant to Fibre Channel MSQS-2 mated test fixture specifications
  3. Compliant to IEEE P802.3bj (100GBASE-CR4) and IEEE P802.3bm/CAUI-4 test fixture specifications
  4. SMA: 2.92 mm or 2.44 mm
  5. Calibration traces
        Allow accurate de‐embedding of test fixture
  6. On‐board EEPROM
        Emulates optical module or cable assembly EEPROM
  7. I2C bus Interface Header
        Allows “in place” of on‐board EEPROM programming
  8. Green LED indicator of host board +3.3V status
  9. Solid Boards - No hanging wires
  10. Developed and manufactured in the USA
