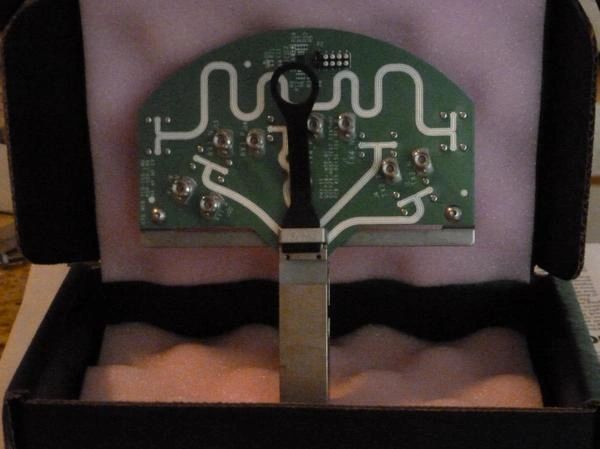

QSFP-DD Host Compliance Board - HCB1

QSFP-DD HOST COMPLIANCE BOARD - 8 of 16 Differential Lanes [TX1,TX2,TX3,TX4] [RX1,RX2,RX3,RX4]

QSFP-DD MSA Hardware Specification

STANDARDS: IEEE802.3cd Mated Test Fixture Specifications

1. IEEE802.3bj, IEEE802.3bm,IEEE802.3bs,and IEEE802.3cd compliant
2. Connectors: 2.92 mm (SMA compatible) or 2.44 mm

3. Calibration traces
       Allow accurate de‐embedding of test fixture

4. On‐board EEPROM
       Emulates optical module or cable assembly EEPROM

5. I2C bus Interface Header
       Allows “in place” of on‐board EEPROM programming

6. Green LED indicator of host board +3.3V status
7. Solid Boards - No hanging wires
8. Developed and manufactured in the USA
