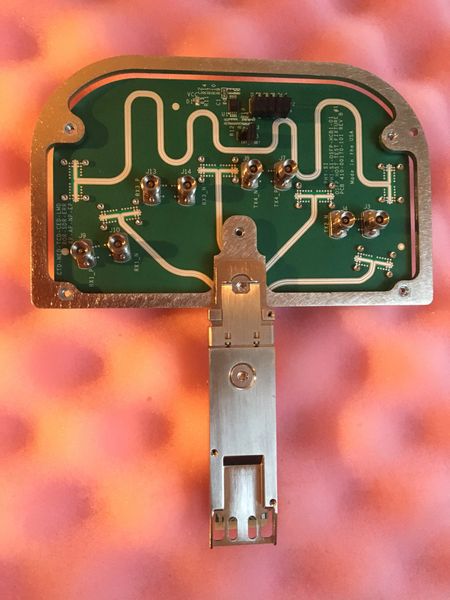

OSFP Host Compliance Board - HCB1

$5,500.00

OSFP HOST COMPLIANCE BOARD - 8 of 16 Differential Lanes [TX1,TX2,TX3,TX4] [RX1,RX2,RX3,RX4]

OSFP MSA Specification

STANDARDS: IEEE802.3cd Mated Test Fixture Specifications

  1. IEEE802.3bj, IEEE802.3bm,IEEE802.3bs,and IEEE802.3cd compliant
  2. Connectors: 2.92 mm (SMA compatible) or 2.44 mm
  3. Calibration traces
        Allow accurate de‐embedding of test fixture
  4. On‐board EEPROM
        Emulates optical module or cable assembly EEPROM
  5. I2C bus Interface Header
        Allows “in place” of on‐board EEPROM programming
  6. Green LED indicator of host board +3.3V status
  7. Solid Boards - No hanging wires
  8. Developed and manufactured in the USA

ATTENTION !!! ON LINE PAYMENTS NOT ACTIVE YET. PLEASE CALL/EMAIL DIRECT.

CALL FOR DISCOUNT PROGRAM !!!

Sales and technical information
PHY-SI LLC
President/CTO
Christopher DiMinico
