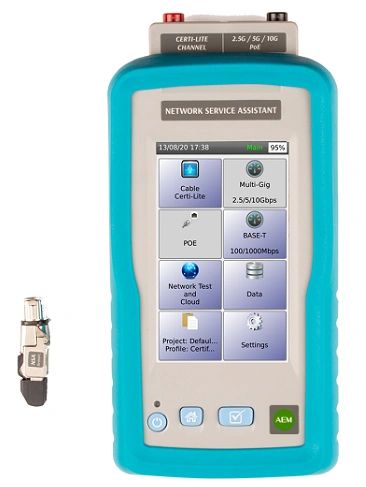

Network Service Assistant

Cabling – Single-ended ANSI/TIA 1152-A complaint RF testing involving the measurement of complex cable parameters such as Return Loss, NEXT, Insertion Loss, ACRF, length, delay, shield discontinuity, and graphical TDR analysis of faults.

Autotest feature – Autotest is the easiest and most reliable way to ensure that cabling links will support the desired network rate with a clear Pass/Fail indication and allows saving of test results.

PoE Testing – All PoE standards, which include 802.3 af/at/bt and UPOE are supported for reporting of PSE configuration and full load testing with reporting of Current/Wattage/Voltage. In addition, it also allows for sustained loading of the PoE source over longer periods to identify hard to find intermittent power drops, through external loads.

Multi-gig Link Speed Testing – NSA is capable of validating a link to ensure Ethernet can be supported at 1/2/5/5/10GBASE-T. It can perform SNR measurements while under traffic and PoE load, ensuring confidence that a cabling link will support the desired network rate.

Network Connectivity Testing – NSA can connect to a live Ethernet network through the 10/100/1000 network interface connector, or via WiFi (Edimax EW-7822ULC Wi-Fi USB adapter required). Once connected, NSA will auto-discover connected devices on the network. You can Ping any other device to verify connectivity with traceroute and measure latency.

Wi-Fi Testing – NSA can auto-discover all 2.4GHz and 5GHz Wi-Fi SSIDs and their associated RSSI values (received power level). This is helpful in discovering Wi-Fi "dead zones" and checking Wi-Fi connectivity with optional Edimax EW-7822ULC Wi-Fi USB Adapter.
